In a similar way to Layar and Wikitude
, OpenAR aims at overlaying information on top of the reality. Simply hold your phone steadily : information about what you are facing is displayed. This is Augmented Reality (AR).
OpenAR focuses on sharing reviews from all users by providing a common server. Do you think this book in the library worths it ? Simply add a review on it. Next time one points his phone at the book, he will be notified about your review.
While most of AR systems only use location to retrieve information, OpenAR strives to use real time video recognition as well. This provides a more flexible way to find points of interest and allows objects not to be static. The librarian may want to change the book from one location to another, OpenAR can still retrieve reviews about it.
Since one of OpenAR's guidelines was to be open source, we needed a free platform to develop it. We chose Android for its philosophy to run on massive types of device. Moreover Android is supported by a strong community and is well documented.
In a nutshell, OpenAR is :

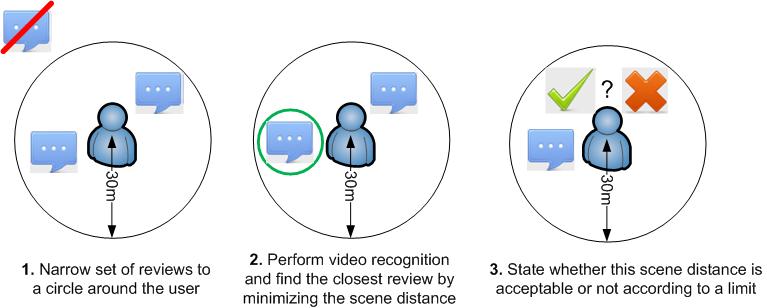

OpenAR is different from classical AR systems in that it uses both location and video scene recognition to retrieve information. Known points of interest are detected by a 3-step mechanism as follows :

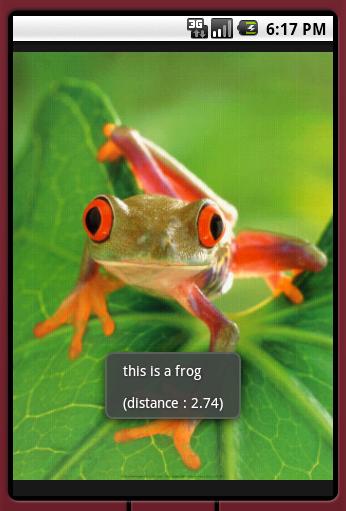

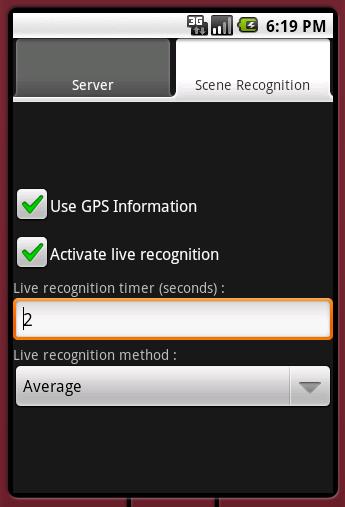

Such a mechanism is triggered everytime the phone remains steady for a fixed period of time (2 seconds by default). If the best potential review is deemed acceptable, then the user is notified.
All reviews are stored on a shared server which runs Apache, MySQL and PHP. We may see the server side of OpenAR as a webservice to all Android clients.
Several meta information are also stored along with reviews :

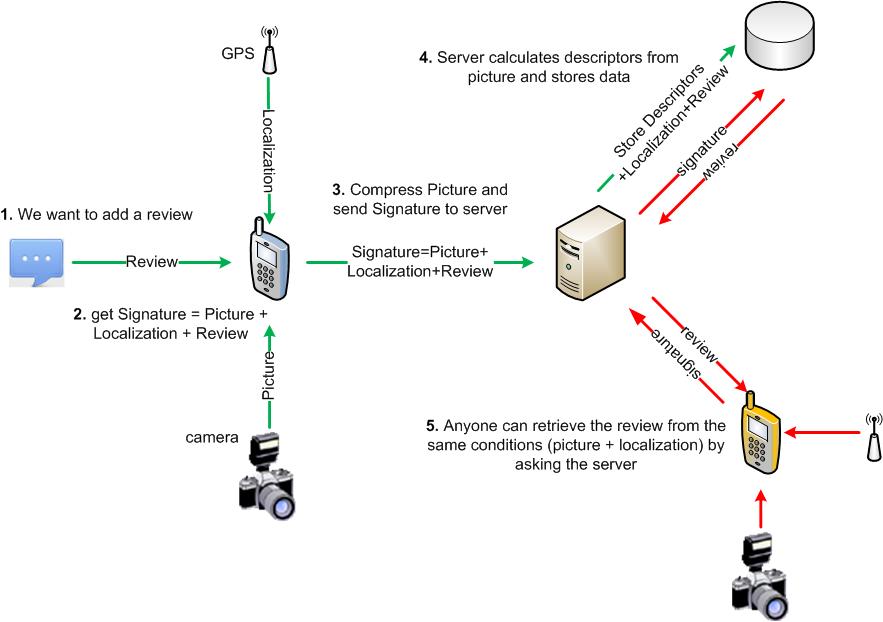

The whole set "picture+location+review" is called a "signature". This is what is actually stored in the database. Once a signature is sent to the server, the latter calculates descriptors from the picture so that we do not need to keep the whole image. Once the signature is in the database, anyone may retrieve the review from the same conditions (same location and similar scene).
We may define 2 basic operations :
Settings > Applications > Unknown sources > Check
applications > openar

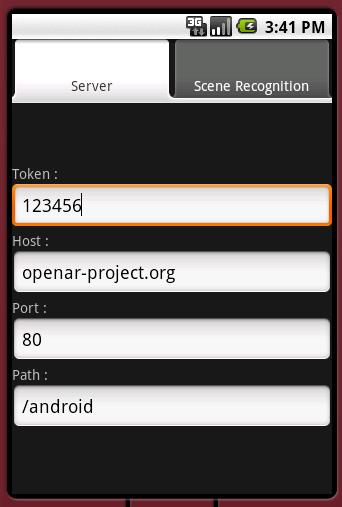

menu > Settings > Server
$svn checkout http://svn.code.sf.net/p/openar/code openar
$ls openar/android/
